Module 03: Internal Systems

TECHNICAL
SCHEMATICS

The "Solar Engine" of EcoCharge. A robust, 100% off-grid configuration designed for tropical resilience and 24/7 reliability.

PV INPUT: ACTIVE

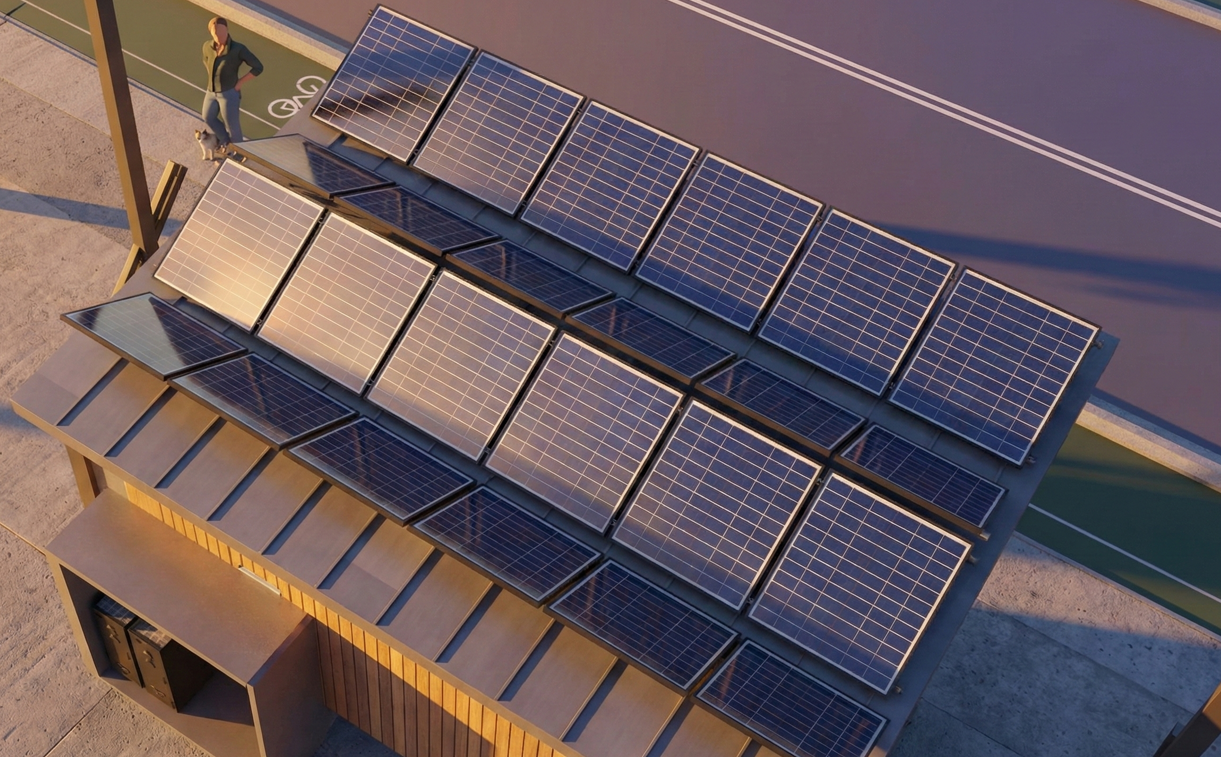

600W Monocrystalline Array

We selected Monocrystalline Silicon for its superior heat tolerance in Philippine climates compared to Polycrystalline.

Efficiency
21.5%
Voltage (Vmp)
36.5 V
Degradation
<0.5% /yr
Lifespan
25 Yrs

Energy Storage Logic

Why Deep Cycle Gel? We analyzed three battery chemistries based on Cost, Safety, and Heat Tolerance.

FIG 3.2: BATTERY BANK INSTALLATION

CHEMISTRY COMPARISON MATRIX

ECOCHARGE: Deep Cycle Gel OPTIMAL CHOICE
High Safety Zero Maintenance Good Heat Tolerance
Alternative: Lithium-Ion Too Expensive
Best Density High Cost ($$$) Thermal Risk
Alternative: Flooded Lead-Acid High Maintenance
Toxic Fumes Regular Refilling Short Life

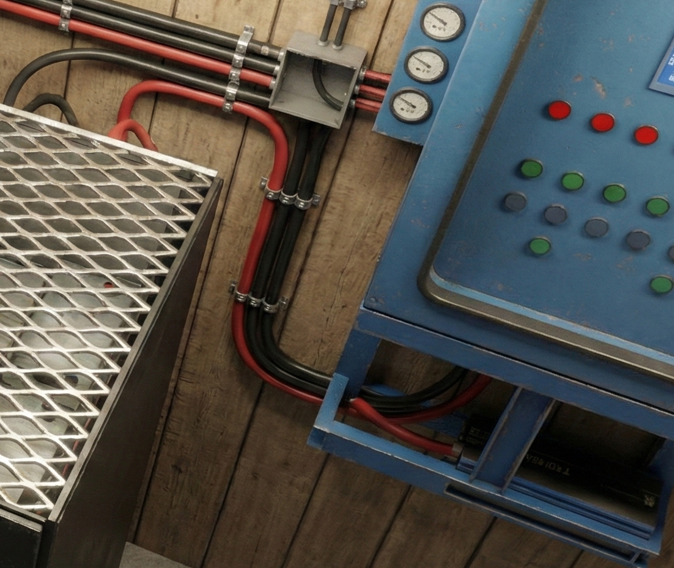

Wiring & Breaker Safety

The system is protected by a multi-stage safety protocol to prevent overheating and short circuits.

DAILY LOAD ANALYSIS FEASIBILITY REPORT 1.0
Component Qty Power Rating Daily Usage Total Energy (Wh)
LED Street Lamps 2 30 Watts 12 hrs (6PM-6AM) 720 Wh
DC Ceiling Fan 1 35 Watts 10 hrs (8AM-6PM) 350 Wh
USB Charging Ports 10 10 Watts (Avg) 8 hrs (Cumulative) 800 Wh
IoT Sensors & Screen 1 15 Watts 24 hrs 360 Wh
Total Daily Energy Demand 2,230 Wh
